Specification
- LTE CAT4 Support
- Maximum 150Mbps Downlink 50Mbps Uplink On LTE
- WiFi 2.4GHz , 802.11b/g/n
- RJ45 Gigabit ports: 1 WAN+3 LAN or 4 Lans
- Internal antennas, External Antenna SMA port
- RJ11 port for CSFB or VoLTE telephone
- Android / iOS App Management
- Supports FOTA and TR069

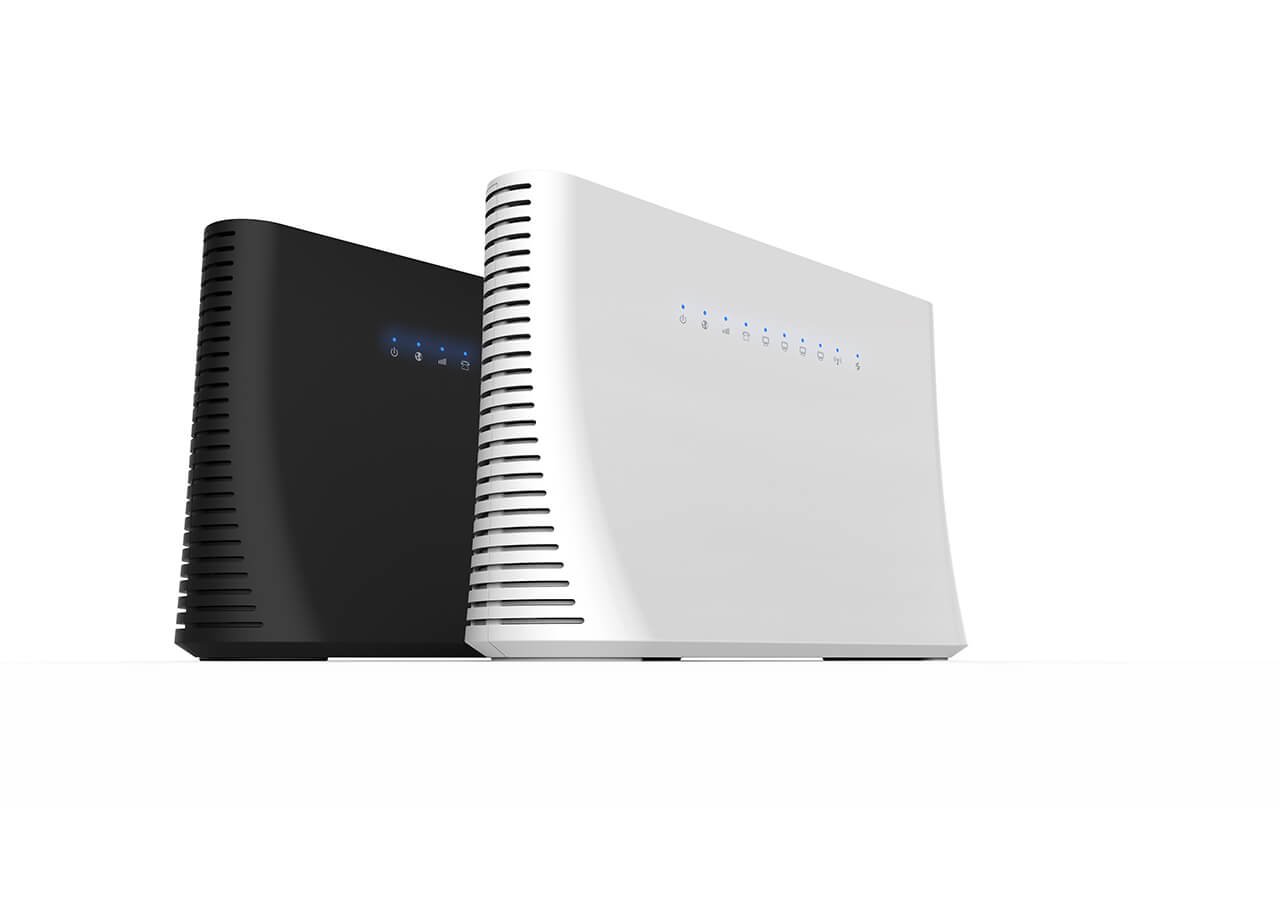

| Model | R724 | ||
| Dimensions | 196 x 126 x 60 mm | ||
| Weight | TBD | ||
| Form | LTE Desk Router | ||
| Communication System (WAN) | Chipset | Qualcomm MDM9x07 | |
| Frequency Bands(customizable as demand) | LTE | Band 1, 2, 3, 5, 7, 8, 28, 38, 40 | |
| UMTS | Band 1, 2, 3, 5, 8 | ||
| CDMA/EVDO | Band Class 0, 1 (MDM9607 only) | ||
| GSM | 900MHz, 1800MHz, 850MHz, 1900MHz | ||
| Bandwidth | LTE Band | 1.4/3/5/10/15/20 MHz, comply with 3GPP | |
| Modulation | Downlink | QPSK/16-QAM/64-QAM, comply with 3GPP | |
| Uplink | QPSK/16-QAM, comply with 3GPP | ||
| Antenna | Internal | Primary and Diversity | |
| External | Optional: Primary and Diversity | ||
| RF Power Level | LTE FDD | Power Class 3 (23 +/-2dBm) | |
| UMTS | Power Class 3 (24 +1.7/-3.7dBm) | ||
| EDGE | Power Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm) | ||
| GPRS | GSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm) | ||
| Data Rate | 4G | 3GPP Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | |
| 3G | 3GPP Downlink/Uplink up to 42Mbps/5.76Mbps 3GPP2 Downlink/Uplink up to 3.1Mbps/1.8Mbps (MDM9607 only) | ||
| 2G | EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps | ||
| WLAN | Wi-Fi | Chipset | MTK7628NN |
| Frequency | 2.4GHz | ||
| Protocol | 802.11b/g/n | ||
| Channel | 1~13 | ||
| Antenna | Internal 2 x 2, external antenna optional | ||
| Data Rate | 802.11b | Up to 11 Mbps | |
| 802.11g | Up to 54 Mbps | ||
| 802.11n | Up to 300 Mbps | ||
| Feature | Interface | LAN/WAN | 4xRJ45 for 4xLANs or 1xWAN+3xLAN |
| RJ11 | VoLTE/ CSFB/VoIP | ||
| USIM | Single, 2FF | ||
| Antenna | External antenna interface supported, internal/external auto-detecting | ||
| Power Jack | 12v1A interface | ||
| LED | Power | Power Status Indicator | |
| Network | 4G/3G/2G Network Status Indicator | ||
| Internet | Internet Connection Status Indicator | ||
| Wi-Fi | Wi-Fi Status Indicator | ||
| LAN/WAN | 4 LEDs for LAN/WAN Indicator | ||
| Phone | RJ11 Status Indicator | ||
| WPS | WPS Enable Status Indicator | ||
| Button | WPS Key | Enable WPS | |
| Reset Key | Restore Factory Settings | ||
| Memory | Module | 2Gbits + 2Gbits | |
| Router | 128Mbits + 1Gbits | ||
| WebUI | System | Connection Status | |
| Statistics | |||
| Device Management | |||
| Power Mangement | |||
| Mobile Service | SMS Manager | ||
| Automatic APN matching according to USIM | |||
| Auto Data Connection | |||
| USSD Service | |||
| PIN/PUK Management | |||
| Network Mode Selection(2G/3G/LTE/Auto) | |||
| Router | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions | ||
| IPv4/v6 | |||
| VPN Passthrough, VPN Client (Optional) | |||
| Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) | |||
| Virtual Server, UPnP, DMZ, DDNS | |||
| DoS, SPI Firewall, IP Address Filter/Domain Filter | |||
| IP and MAC Address Binding | |||
| Traffic Control (IP QoS) | |||
| Access Control, Local Management, Remote Management | |||
| Operation System | Windows | XP/7/8/10 | |
| MAC OS | 10.7+ | ||
| Linux | Ubuntu 13.04+ | ||
| Browser | IE9+, Firefox, Google Chrome, Safari, Opera | ||
| Environment | Power Supply | USB, 12V1A | |
| Working Temperature | 0°C to 45°C | ||
| Storage Temperature | -20°C to 60°C | ||
| Certification | 3GPP Compliance | CE/FCC/GCF, upon customer’s requirement | |
| Meterial | RoHS | ||
