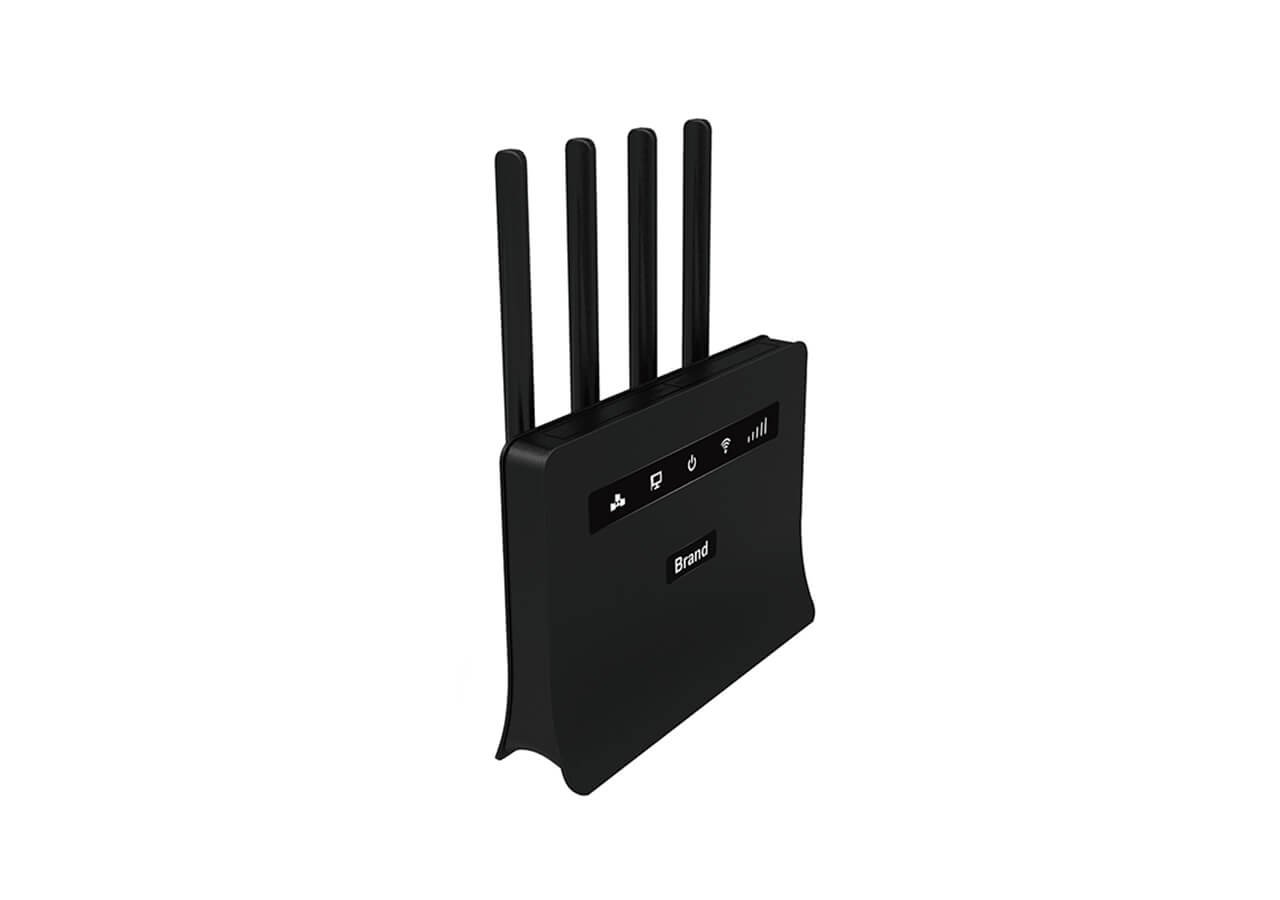

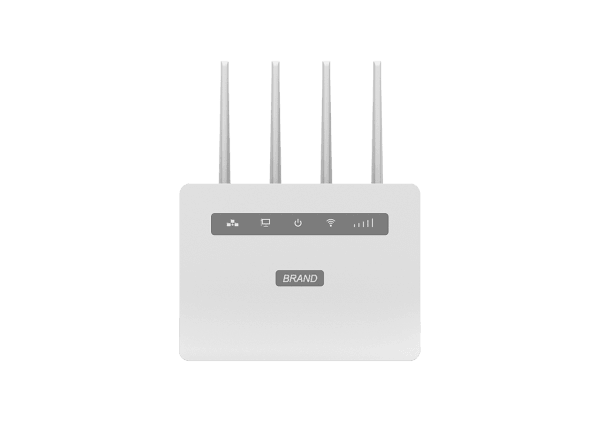

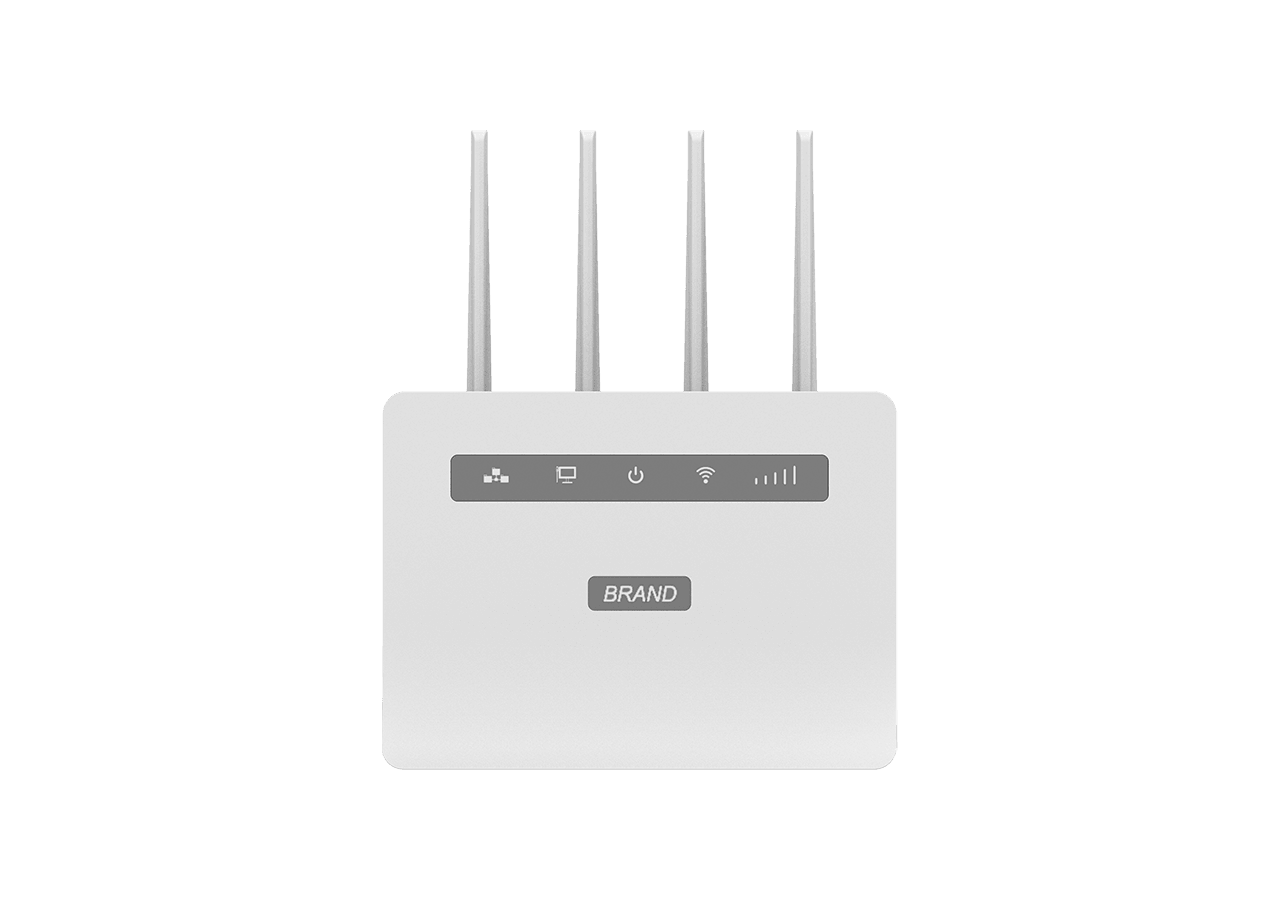

Specification
- LTE CAT6 Support, Up to LTE Cat16
- Maximum 300Mbps Downlink 50Mbps Uplink On LTE, Up to 0.96Gbps Downlink on LTE Cat16
- Support Band 66 and Band 71
- 4*4 MIMO Carrier Aggregation
- WiFi 2.4&5GHz DBDC Up to 1.2Gbps
- RJ45 Gigabit ports: 1 WAN+3 LAN or 4 Lans
- External Antenna
- RJ11 port for Voice on VoLTE / CSFB and VoIP
- Supports FOTA and TR069
| Basical Information | Model Name | R868 |
| Form Factor | CPE | |
| Color | Black | |
| Air Interface | Technical Standard | Compatible with WCDMA, FDD-LTE, WCDMA,GSM WIFI 802.11 b/g/n/ac DBDC |
Frequency (Customizable as demand) | Minimum: LTE FDD:B2/B4/B5/B7/B12/B28/B66 WCDMA:B 1/2/5 GSM:B2/B5 Recommend: LTE:B2/4/5/7/26/12/13/17/28/66 WCDMA:B1/2/5 GSM:850/1900 4X4 MIMO:B2/4/5/7/12/17/26/28 | |
| WIFI | 2.4&5 GHz, WIFI 2*2 MIMO，802.11 b/g/n/ac DBDC | |
| Performance | Maximum Data Throughput | LTE CAT6 FDD-LTE 300Mbps/50Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support LTE DL 4×4 MIMO | |
| BB Chipset | Qualcomm MDM9x50 | |
| AP+WIFI Chipset | MT7621A+MT7603E+MT7612EN | |
| Memory | Modem:512MB+256MB AP:256MB+16MB | |
| power consumption | <12W | |
| Power Voltage | DC12V/1A | |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot | |
| LED | Power Indication LED（SYS），WAN Signal Strength(RF)， WiFi/WPS Indication LED(WIFI)， WAN/LAN Status LED(ETH)，Internet Status LED(NET), | |
| USB | USB3.0 (between modems,not for end users) 1* USB2.0（external Interface for debug） | |
| Antenna | 4 x LTE 4×4 MiMo 2 x WIFI (2.4 + 5G) 2*2 MIMO | |
| Buttons | POWER,Reset,WPS Power: CPE should send the information to network when the CPE is Powered off. | |
| Slic | SI32185 | |
| Ethernet | 1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port | |
| RJ11 | RJ11x1 | |
| Reset | Pinhole | |
| ESD | ESD Protection circuit; Contact±8KV, Air±10KV | |
| Software | SW Update | TR069 & Local Update |
| WIFI Mode | AP Only | |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| SMS | Support | |
| Voice | VoLTE & VOIP & CS Domain voice | |
| AGPS | Not Support | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list ALG: SIP(must)/RSTP(optional) FTP(optional) | |
| Data Statistics | Support | |
| VPN Pass Through | PPTP/L2TP/IPSec | |
| SIM Lock | Support | |
| TR069 | Support; | |
| Fota | Support; | |
| SNTP | Support | |
| DOS ATTACK | Support | |
| DMZ | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Certification | Certification | Depends on customization, cost related |
| Environment | Operating Temperature | Normal:0°C to +45°C; |
| Storage Temperature | -20° C to +70° C | |
| Humidity | 5%~ 95% |
